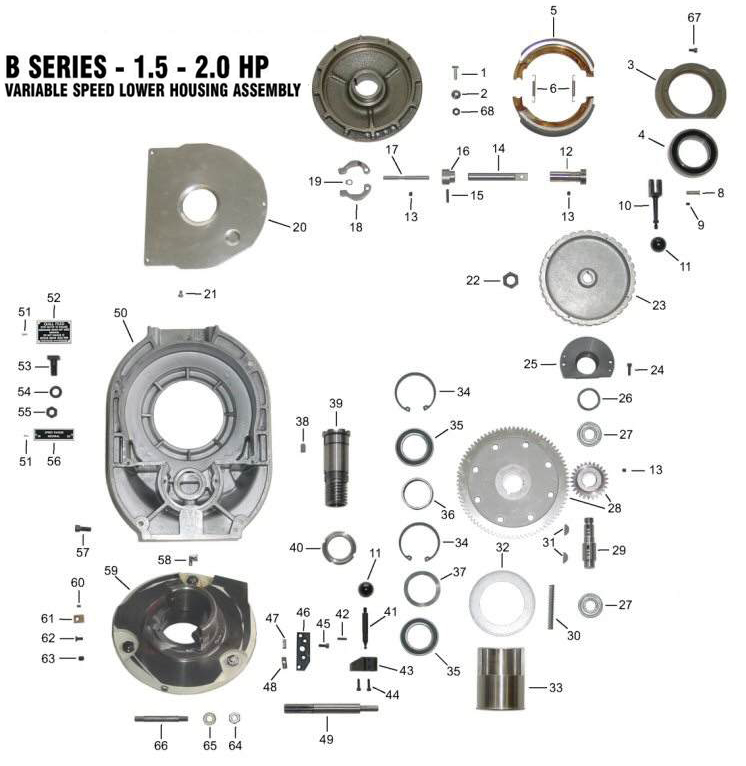

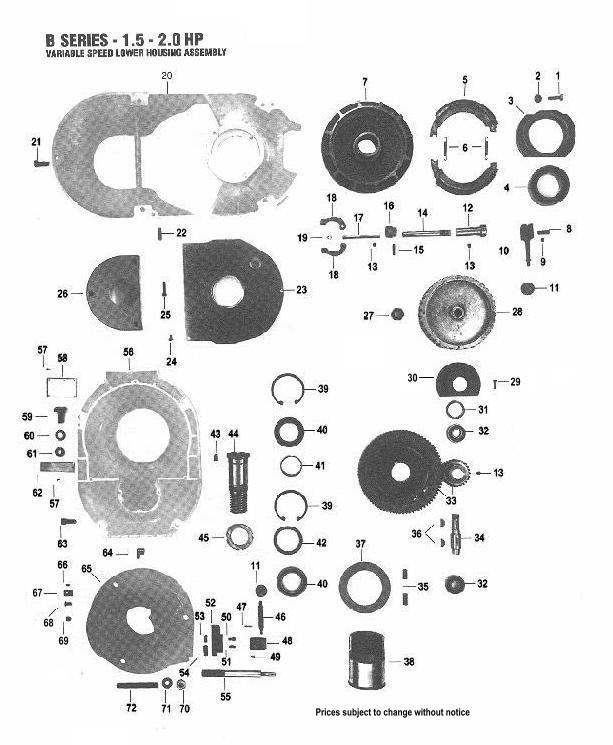

Variable Speed Lower Housing Assembly
  Bridgeport Mill Parts and Service |
variable speed upper housing | variable speed lower housing | quill housing |
leadscrew assembly | step pulley housing | base machine assembly |
Knee Mill Service - How To Tips
Machinist, Metalworking, And Industrial Supplies Catalog |                                Click this link to Cutting Tools catalog
     Supplies like Calipers, Micrometers, Indicators, Vises,                                                       Drills, End Mills, R8, 40 Taper, Turning Tools, Inserts
    Readouts, Power feeds, Tooling, Edge Finders                                                                  Face Mills, Cutoff Blades  Wholesale Prices



To view other machine parts listings click on the above links:   ^
Some States I cannot ship to: Kansas   Oklahoma   Maine   New Hampshire   Vermont   Connecticut   Massachuetts
Tennessee area codes 901 731   Texas area codes 940 682 817 903 972 468 254 214   These areas have local distributors
To order parts:
1- Find item# from the listing below  \/                                                                                    Phone orders call * 800-746-9550 * 314-630-3575
2- Locate the item# and description in the Add to cart area                                                                              Call Days, Evenings, Weekends
3- Press Add to cart button. This takes you to checkout.                                                                                  If I'm here I answer the phone
   Please give this a few seconds to update the page                                                                                          Please leave message if no answer
4- You can checkout or return to this or other pages for more shopping                                                           Fax orders toll free 866-219-3613
5- Upon checkout this will take you to Paypal's secure site for processing
  You can pay with Credit Card or E-check. Be sure to leave ship to address and PO# if needed
  You can skip Paypal registration
  Shipping is flat rate of $10.00. Taxes may apply within Missouri
  Usually 1-4 day delivery. Orders under $30 may take longer to ship


Arch City Service 314-630-3575 * 800-746-9550 fax toll free 866-219-3613 please leave message  parts@archcity.net

After pressing Add to Cart button please give the page a few seconds to update
#1
 1565- Screw $0.75
#2
 1566- Pivot Sleeve $9.75
#3
 1127- Bearing Cap $50.00
#4
 1558- Bearing $48.00
#5
 1563- Brakes Set $82.00
#6
 1562- Brake Spring $8.50
#7
 1561- Varidisc $163.00
#8
 1262- Brake Pin $6.50
#9
 1260- Set Screw $0.75
#10
 1261- Brake Handle $29.00
#11
1259- Plastic Ball $4.00
#12
 1592- Sleeve $18.50
#13
 1307- Set Screw $0.75
#14
1593- Lock Shaft $23.50
#15
 1463- Roll Pin $1.00
#16
 1594- Brake Cam $35.00
#17
 1587- Pivot Stud $8.75
#18
 1588- Brake Finger $27.00
#19
 1030-03- Snap Ring $1.75
#20
1575 Belt Housing N/A
#21
 1524- Cap Screw $1.00
#22
 1574- Taper Pin $3.00
#23
 1585- Gear Plate $20.50
#24
 1584- Screws $0.75
#25
 1524- Cap Screw $1.00
#26
1525- Pulley Cover $52.00
#27
 1258- Jam Nut $4.00
#28A
 1146- Timing Pulley $130.
#28B
 1539- Timing Pulley $200.
#29
 1524- Cap Screw $1.00
#30
 1533- Bearing Cap $33.00
#31
 1531- Spring Washer $7.30
#32
 1277- Key $12.00
#33
 1490- Bull Gear $378.00
#34
 1529- Shaft $27.00
#35
 1505- Spring $4.75
#36
 1279- Key $2.75
#37
 1498- Sleeve Washer $8.50
#38
1507- Bearing Sleeve $232
#39
 1492- Snap Ring $2.20
#40
 1491- Bearing $95.00
#41
 1493- Bearing Spacer $23.50
#42
 1508- Wave Washer $5.20
#43
 1530- Key $3.50
#44A
1161- Splined Hub $242.00
#44B
037-0739 CNC Splined Hub $232
#45
1506- Bearing Locknut $29.00
#46
 1520- Hi-Lo Crank $29.00
#47
 1522- Roll Pin $1.00
#48
 1521- Hi-Lo Block $36.00
#49
 1518- Cap Screw $1.00
#50
 1502- Cap Screw $1.00
#51
 1514- Set Screw $2.10
#52
 1510- Detent Plate $47.50
#53
 1517- Spring $4.30
#54
 1516- Plunger $24.00
#55
 1509- Pinion $34.00
#56
1494 Housing N/A
#57
 1578- Rivet Screw $0.75
#58
 1581- Name Plate $8.75
#59
 1495- Tee Bolt $10.20
#60
 1496- Washer $3.20
#61
 1497- Jam Nut $2.00
#62
 1579- Nameplate $7.75
#63
 1523- Cap Screw $1.00
#64
 1504- Oil Cup $18.00
#65
 1499- Bracket N/A
#66
 1503- Dowel Pin $1.20
#67
 1501- Guide $22.00
#68
 1152- Cap Screw $1.00
#69
 1500- Set Screw $0.75
#70
 1511- Hex Nut $1.20
#71
 1512- Lock Washer $4.75
#72
 1513- Studs $7.90
